How to Adjust Electric Guitar Action for Better Playability (Step-by-Step Guide)

Summary

A comprehensive guide to optimizing electric guitar action for improved playability, covering actionable steps to adjust string height (nut/saddle), intonation, and neck alignment, along with essential tools, pre-inspection checks, troubleshooting, and long-term maintenance tips for beginners and intermediate players.

1. Understanding Electric Guitar Action: Core Concepts

1.1 Definition of Guitar Action

• Vertical distance between strings and fretboard at the 12th fret (fretboard height): This measurement, typically 0.010"-0.020" for electric guitars, determines the string's proximity to the fretboard. A well-adjusted height here balances playing ease with tone resonance.

• Nut height (open string height) and bridge saddle compensation (intonation): The nut dictates string height at the top of the neck, while the bridge saddle not only supports the strings but also creates intonation (compensating for string tension differences across the neck).

• String tension balance across the neck: Even tension distribution ensures minimal pull on fingers or neck, preventing fatigue and maintaining consistent playability across all strings.

1.2 Why Adjusting Action Enhances Playability

• Reduces hand strain from excessive fretting pressure: Properly set strings require less downward force, lowering long-term injury risks common in players with poor action (e.g., "hammering out" notes with painful precision).

• Eliminates string buzzing and muted notes: Uneven string height causes vibrations to either press too hard against the fret (mute) or slip between frets (buzz). Adjusting height ensures clear, full-bodied notes.

• Improves chord transition fluidity and note clarity: Lower, even action allows smoother finger placement and strumming, turning jarring muted chords into seamless voicings.

• Critical for solo performance and bar chord technique: In fast solos or switch-patterns (e.g., A5 to C5), precise height ensures rapid note articulation without accidental string clashes.

2. Essential Tools for Action Adjustment

2.1 6 Key Tools for Precision Work

• Electronic feeler gauge/ruler (0.010"-0.047" gauges): Displays string-to-fret distance numerically in 0.001" increments, essential for measuring initial height and verifying adjustments.

• Truss rod wrench (hex or Allen key): Corrects neck bow (concave or convex warping) by tightening or loosening the internal truss rod, ensuring long-term stability.

• Nut/saddle files and sandpaper: Specialty files (120-220 grit) shape slots or saddles without over-removing wood, while sandpaper refines surfaces for smooth transitions.

• Allen wrenches/Philips screwdrivers (for bridge/tremolo): Tools for adjusting fixed bridges, Floyd Rose tremolo systems, or locking nuts, ensuring secure tensioning of components.

• String winder and cutter: Safely retension strings during setup, with cutters for clean, even string ends that prevent fraying.

• Digital tuner (for intonation verification): Confirms open and 12th fret notes match pitch before finalizing bridge adjustments, catching discrepancies as minor as 5 cents off.

3. Pre-Adjustment Inspection: Diagnose Issues

3.1 Fretboard and String Setup Checks

• Clean fretboard with isopropyl alcohol and microfiber cloth: Removes oil, sweat, and debris that cause strings to "catch" on the wood, often misdiagnosed as high action or buzzing.

• Verify neck straightness using a straightedge (check 12th fret gaps): Place a 24"-36" straightedge across the 12th fret; measure gaps (≤0.010" = straight) to detect warping. Even 0.005" gaps can cause uneven string contact.

• Test intonation (open vs. 12th-fret notes) for tuning discrepancies: Pluck the open high E and play the 12th fret harmonic/E note; if they don't match, adjust the bridge saddle position.

3.2 Identify Problem Areas

• Muted notes: High string height at nut/bridge presses strings too tightly against frets, trapping sound and causing "dead" spots on chords.

• Buzzing: Low string height (≤0.008" at 12th fret) or uneven neck bow (one side higher) causes strings to vibrate against frets, creating audible rattle.

• Intonation errors: Misaligned bridge saddles (for fixed bridges) or nut slots (for open strings) force pitch discrepancies, turning "in-tune" notes into sour flubs.

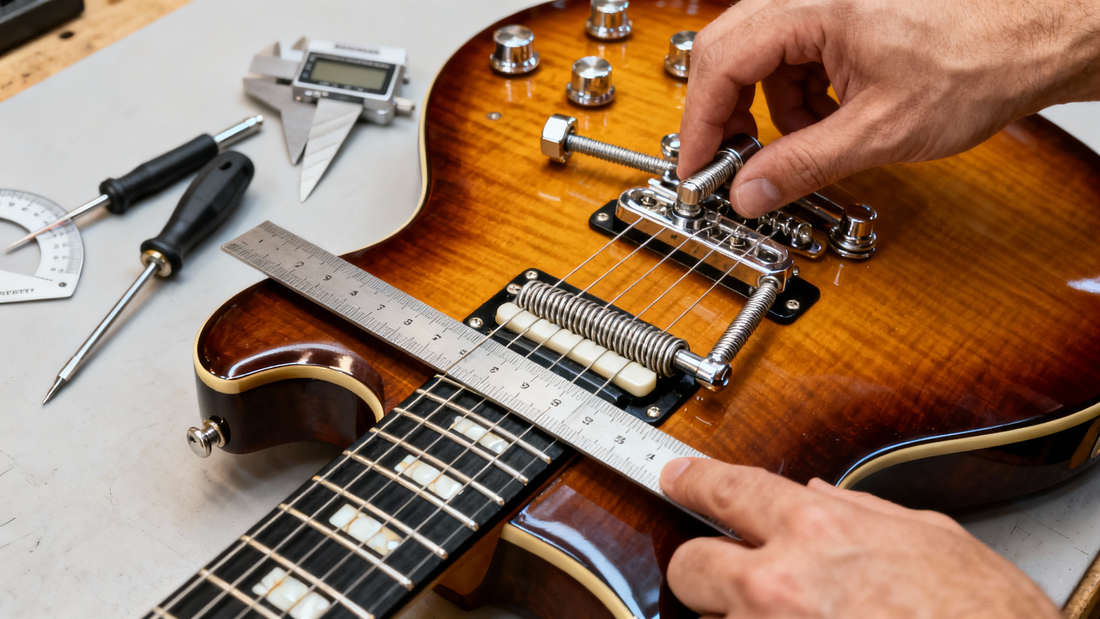

4. Step-by-Step Action Adjustment: Nut to Bridge

4.1 Adjusting the Nut for Open String Height

• Measure open string height with feeler gauge (0.010"-0.012" for E string): Insert a 0.012" gauge under the 6th string at the nut; it should barely slip between string and slot (0.005" clearance for easier play).

• File nut slots to reduce height incrementally (0.001" per pass): Use a diamond or emery file to carefully sand down slots, checking with the gauge after each pass to avoid over-cutting the wood inserts.

• Use shims or sanding if replacing nut inserts: If the original nut material needs replacement, 0.002" paper shims under the nut base raise height if opening string height is too low.

4.2 Adjusting the Bridge Saddle for Intonation

• Fixed bridge: Compensate 12th-fret notes by adjusting saddle length (0.002"-0.003" difference from open string). For a fixed bridge, the G string should be 0.003" shorter than open, while E string needs 0.002" less length for optimal intonation.

• Floyd Rose tremolo: Match nut-to-bridge height for stability during dive-bombs. Align the 12th-fret contact point with the nut height, then lock tremolo arms to prevent "float" during extreme bends.

• 2-string testing method: Pluck open G and fret the 12th G; if the open note is flat, shorten the saddle by 0.001" and repeat. This isolates one string at a time, avoiding cumulative errors.

4.3 Adjusting Vertical Tension (Bridge Screws)

• Loosen bridge screws slightly before adjustment: This releases tension holding the strings, making height changes easier without warping the bridge plate.

• Tighten clockwise to raise string height, counter-clockwise to lower: Each full clockwise turn raises the bridge 0.002"-0.003" per string; use small increments (0.001" per turn) to avoid sudden high tension.

• Use thread-locking glue for loose screws: Treat bridge screws longer than 3/8" with Loctite 262 to prevent slippage, which causes sudden height discrepancies during tuning.

5. Truss Rod Adjustment for Neck Straightness

5.1 Neck Relief Testing

• Place straightedge across 12th fret; measure gaps (≤0.010" gap indicates straight neck): With the straightedge touching the 1st and 12th frets, check clearance at the 7th fret (≤0.015") for convex warping.

• Adjust truss rod for concave neck (counter-clockwise for tension) or convex neck (clockwise): A concave neck (fretboard curves downward) requires counter-clockwise truss rod turns to straighten; a convex neck (curves upward) needs clockwise adjustment to reduce bowing. Always adjust a string, then recheck notes for tension changes.

5.2 Compensating for Fret Wear

• File frets if 12th-fret height variation exceeds 0.005": Use a fret leveling file to even out dimples or raised edges, then sand with 400-grit sandpaper for "crowning" (rounded edges) to restore even string contact.

• Lower nut height incrementally to balance tension with worn frets: If a fret is worn, reducing nut height by 0.001" per string reduces overall tension, preventing excessive finger pressure while maintaining intonation.

6. Post-Adjustment Testing & Refinement

6.1 Chord Stretch Test

• Rapidly play G major and A minor chords across 12th-15th frets: Strum G (320003) and A minor (x02210) at 120 BPM for 1 minute, checking for muted notes or buzzes at the 14th-15th frets, which indicate remaining height issues.

• Eliminate buzzing by verifying string-to-fret contact at all frets: Press the 1st F (bottom string) and 12th F (7th string) to ensure uniform pressure; if one string buzzes, recheck the corresponding saddle or nut slot.

6.2 Intonation and Stability Verification

• Use tuner to confirm open and 12th-fret notes match: Play the open E and 12th-fret E; if sharp, shorten the E saddle by 0.001". If flat, extend the saddle by 0.001" and re-tune.

• Test tremolo stability (Floyd Rose: dive 1-2 inches and check tuning retention): Pluck the 12th-fret G, then rapidly pull the tremolo arm down 1" and release; if the note stays in tune, adjust saddle height by 0.003" to prevent slipping during hard dives.

6.3 String Height Consistency

• Measure height at 1st, 7th, and 12th frets (variation ≤0.003"): Using the feeler gauge at each fret, ensure Δ height between frets is no more than 0.003" (e.g., 1st fret = 0.010", 7th = 0.011", 12th = 0.012").

• Adjust individual strings for uniform action: If the 1st string is 0.005" higher than the 6th, reposition the bridge screw for the 1st string to balance tension, then re-tune and verify all strings at once.

7. Pro Tips to Avoid Common Pitfalls

7.1 Action Adjustment Best Practices

• Start with low initial height (0.010" open string) and incrementally raise: Begin with 0.010" at nut, then add 0.002" per string until comfortable playability, avoiding "too high" strings that cause weak tone.

• Adjust intonation before nut height to balance tension: Intonation depends on string length; correct the bridge first, then fine-tune nut height to maintain symmetry.

• Use lighter gauge strings (10-46) for easier bending with lower action: Lighter strings reduce tension, allowing lower nut/bridge heights without sacrificing tone or sustain.

7.2 Long-Term Maintenance Hacks

• Clean fretboard monthly to prevent residue buildup: Use 91% isopropyl alcohol on a microfiber cloth to dissolve sweat, sunscreen, and dust, which cause strings to "grip" the fretboard.

• Control humidity with desiccant packs in guitar cases: Electric or acoustic guitars stored in dry environments (≤45% humidity) prevent neck warping and string rust, maintaining consistent action over time.

• Replace strings every 4-6 months to maintain consistent tension: Old strings (especially light gauges) stretch over time, causing previously stable action to become uneven; fresh strings ensure reliable intonation and response.

8. When to Seek Professional Help

8.1 Advanced Issues Requiring Luthier Assistance

• Fret leveling/crowning for severely worn frets: If multiple frets show high/low wear (e.g., 0.008" variation across the neck), a luthier uses a fret press to re-shape the entire neck for evenness.

• Nut replacement or bridge saddle repositioning for extreme warping: A warped bridge plate (beyond 0.015" neck bow) requires professional bridge replacement to maintain string tension.

• Truss rod repair for neck bow that won’t stabilize with adjustment: If the neck still warps after 3-4 truss rod turns, internal rod damage (e.g., stripped threads or broken components) requires expert resetting.

Conclusion

By systematically adjusting nut height, bridge tension, and neck alignment, players achieve optimal playability. Prioritize comfort and clarity, start with small increments, and trust the tactile feedback of your fingers on the fretboard. Remember: proper action isn’t just about ease—it’s the foundation of every note, chord, and solo you’ll ever play.
