How to Adjust Electric Guitar Action: 6 Steps to Perfect Playability

Summary

This all-encompassing guide walks you through 6 structured, actionable steps to fine-tune your electric guitar’s action—the height of your strings above the fretboard—for a drastically improved playing experience. We start with the fundamentals, breaking down what action is, why it matters for your tone, playability, and even intonation, so you have a solid base to build from. Next, we outline every tool you’ll need, from professional-grade truss rod wrenches and feeler gauges to accessible DIY alternatives like a simple ruler or capo for quick checks. As you move through the step-by-step adjustment process, we also tackle common headaches like fret buzz, wonky intonation, and uneven string tension, with clear troubleshooting tips to fix these issues fast. We even dive into pro-level techniques, such as custom nut shaping and multi-scale neck calibration, to help you tailor your guitar’s feel to your unique playing style, whether you’re a jazz player craving smooth bends or a metal shredder chasing lightning-fast riffs. Finally, we cover long-term maintenance habits, like seasonal humidity checks and regular fretboard care, to keep your guitar’s action optimized for months to come. The end result? A guitar that plays effortlessly, cuts down on finger fatigue, and lets you focus on making music, not fighting your instrument.

1. Understanding Guitar Action Basics

1.1 Definition and Criticality

• Definition: Guitar action refers to the vertical distance between the bottom of your guitar strings and the surface of the fretboard, universally measured at the 12th fret for consistency. This measurement is taken with the strings tuned to standard pitch, as tension directly affects the final distance.

• Impact: This seemingly small gap holds immense sway over your playing experience and sound. It shapes tone—higher action lets strings vibrate more freely, yielding a fuller, resonant sound, while lower action creates a tighter, brighter attack. Playability is also directly tied: too-high action forces you to press harder, leading to finger fatigue and missed notes, while overly low action can cause annoying fret buzz. Additionally, action influences the string break angle over the bridge and nut, which affects sustain, and even intonation, as incorrect heights can throw off the accuracy of notes up and down the fretboard.

1.2 Standard vs. Personalized Action Requirements

• Factory Defaults: Guitar manufacturers set baseline action specs based on string gauge, the most common being light (009 - 011) and medium (011 - 013) sets. For light strings, factory action typically hovers around 2–3mm at the 12th fret for treble strings and 3–4mm for bass strings, balancing playability and buzz resistance. Medium - gauge strings, which have more tension, often come with slightly higher default action (3–4mm for treble, 4–5mm for bass) to prevent buzz and maintain intonation stability.

• Player Preferences: Factory specs are just a starting point, as ideal action depends on your unique needs. Fretboard radius matters—a flatter 14" radius (common on metal guitars) can handle lower action than a curved 9.5" radius without buzz. Hand size also plays a role: players with larger hands may prefer slightly higher action to avoid accidentally muting adjacent strings, while those with smaller hands often opt for lower action for easier fretting. Musical style is another key factor: jazz players, who favor wide, expressive bends and warm tone, often go for higher action, while metal shredders prioritize lightning - fast runs and choose ultra - low action to minimize finger movement.

2. Essential Tools for Adjustment

2.1 Must-Have Tools

• Professional: A truss rod wrench is non-negotiable for fine-tuning neck relief, as it’s precision-machined to fit the specific hex or socket head on your guitar’s truss rod, preventing stripped hardware. Saddle gauges take the guesswork out of measuring string height at the bridge, offering calibrated readings to match your desired action specs. Feeler gauges, meanwhile, are indispensable for checking neck relief and nut slot clearance, with thin, rigid blades that slide between strings and frets for accurate, consistent measurements.

• DIY Alternatives: If you don’t have professional gear, a basic ruler (preferably with millimeter and inch markings) can approximate string height at the 12th fret. A flathead screwdriver can double as a makeshift truss rod wrench for some guitars, though caution is key to avoid damaging the rod’s head. A capo, when clamped just behind the 12th fret, can temporarily simulate a straight neck, letting you get a rough idea of neck relief without specialized tools.

2.2 String Gauge & Nut/Saddle Considerations

• String Gauge Impact: Thicker strings exert far more tension on the guitar neck and bridge than lighter gauges. This increased tension can pull the neck forward, altering relief, and requires a slightly higher action to maintain intonation stability. If action is too low with heavy strings, the added tension can cause strings to buzz against frets as they vibrate, while a properly adjusted higher action ensures notes stay in tune up and down the fretboard.

• Nut Height: A critical but often overlooked detail, nut height directly affects playability at the lower frets. The minimum 0.025" clearance (measured between the bottom of the string and the top of the first fret, with the string pressed at the third fret) ensures strings sit high enough to rattle against the first fret when played open, but low enough to feel comfortable for quick, clean fretting. Too little clearance causes buzz, while too much makes bending and fretting near the nut unnecessarily difficult.

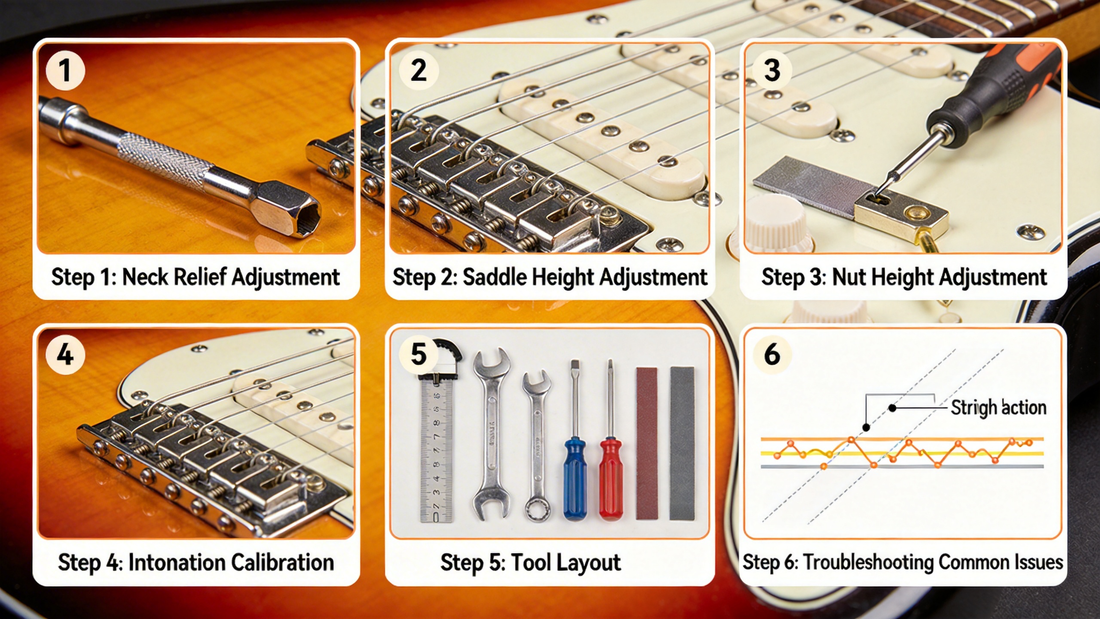

3. 6 Steps to Adjusting Electric Guitar Action

3.1 Step 1: Truss Rod & Neck Relief

• Neck Curvature Tuning: Start by addressing any bowed or concave neck, which can throw off your guitar’s playability and intonation. The goal is to achieve a subtle relief where the bow measures less than 1/64 of an inch when measured at the 12th fret. Use your truss rod wrench to make small, gradual turns—typically a quarter-turn at a time—to avoid over-adjusting, which can damage the neck. Wait a few minutes after each adjustment to let the neck settle before rechecking.

• Straightedge Testing: Before moving to other adjustments, verify your neck relief with a precision straightedge. Lay the straightedge along the length of the fretboard, from the nut to the body joint, and check the gap between the straightedge and the 12th fret. This test confirms whether your neck curvature is within the ideal range, ensuring you have a stable foundation for the rest of the setup process.

3.2 Step 2: Saddle Height Adjustment

• Intonation Correction: Proper intonation ensures each string plays in tune up and down the fretboard, which requires equalizing the effective string length between the nut and the saddle relative to the 12th fret markers. If the 12th fret harmonic and fretted note don’t match, adjust the saddle forward or backward to fine-tune the string length until both notes are identical.

• Micrometer Measurement: Set the saddle height to create a 2 - 4 mm gap between the string and the 12th fret, though this range varies slightly by string gauge—thicker strings may need a touch more height to avoid buzz. Use a micrometer for precise readings, adjusting each saddle individually to maintain consistency across all strings.

3.3 Step 3: Nut Height Adjustment

• Slot Depth Check: The nut slots must match your fretboard’s radius to ensure each string sits at the correct height relative to the frets. If slots are too deep, strings will buzz at the lower frets; if too shallow, fretting near the nut will feel stiff. Use a nut file to carefully deepen or smooth slots as needed, making sure each string rests evenly without binding.

• Lateral Alignment: Center each string in its nut slot using the fret markers as a guide. Misaligned strings can cause uneven tension, buzz, or even string breakage. Ensure there’s consistent spacing between strings, typically around 1 mm, to keep your playing area clean and comfortable.

3.4 Step 4: Fret Leveling & Crowning

• Uneven Fret Detection: Visually inspect the fretboard for worn or uneven frets, which can cause dead spots or buzz. You can also run your finger along the frets while the strings are under tension to feel for high or low spots. Pay close attention to heavily used areas like the 1st to 12th frets, which tend to wear down first.

• Dressing Procedure: If you spot uneven frets, use 400 - 600 - grit sandpaper to carefully level the fret tops. Secure a sanding block to keep the surface flat, then follow up with a file to recrown the frets, restoring their rounded shape for smooth string contact. Wipe away dust thoroughly before restringing.

3.5 Step 5: String Height Finalization

• High/Low String Balance: Maintain consistent tension across bass and treble strings by adjusting saddle heights to create a gradual, even slope that matches your fretboard radius. Bass strings may need slightly more height to accommodate their thicker gauge, while treble strings can sit lower for faster playability.

• Zero Buzz Testing: Play every fret on every string up and down the scale to check for unwanted buzz. If you hear buzz, make tiny adjustments to the saddle or truss rod to eliminate contact between the string and frets without raising the action more than necessary.

3.6 Step 6: Playability Verification

• Full Fretboard Testing: Spend time playing through chords, scales, and licks across the entire fretboard to ensure smooth, consistent playability. Test bends, hammer - ons, and pull - offs to make sure the action feels responsive and comfortable.

• Tension Adjustment: Fine - tune the action based on your personal hand comfort and musical style. Jazz players may prefer slightly higher action for warm, full tones, while metal players might opt for lower action for fast, aggressive playing. Make small tweaks until the guitar feels like an extension of your hands.

4. Troubleshooting Common Issues

4.1 Buzzing Notes

• Problem Identification: Pinpointing the source of buzzing notes can be tricky, but the stethoscope method is a reliable go-to. Rest the head of a mechanical stethoscope (or even a rolled-up paper tube) against the body near the affected fret, then play the buzzing note and compare it to the sound of adjacent frets. This side-by-side comparison helps you isolate whether the buzz is coming from a specific fret, the nut, or the saddle, ruling out broader issues like an uneven neck.

• Correction: Once you’ve identified the problematic area, two common fixes can resolve the buzz. If the buzz occurs at a higher fret, carefully lower the corresponding saddle using a hex wrench—make tiny, gradual adjustments to avoid overcorrecting. For buzz at the lower frets near the nut, use a precision nut file to re-cut the slot slightly deeper, ensuring the string sits at a height that prevents contact with the first few frets while maintaining proper tension.

4.2 Intonation Compensation Fixes

• Saddle Alignment: Even a misaligned saddle can throw off your guitar’s intonation across the fretboard. Use a nut-bridge string length guide, a simple tool that maps the ideal distance between the nut and saddle based on your guitar’s scale length. This guide ensures each saddle is positioned along the correct axis, so the effective string length matches the 12th fret’s harmonic pitch.

• Calibration: True intonation requires tuning each string individually. Start by tuning the open string to pitch, then play the 12th fret harmonic and the fretted 12th fret note. Use a digital tuner to compare the two—if the fretted note is sharp, move the saddle back; if it’s flat, move the saddle forward. Repeat this process for every string, checking again after each adjustment to ensure consistency up and down the neck.

4.3 String Break Angle Adjustments

• Optimal Angles: The angle at which strings break over the saddle and nut directly impacts tone and sustain. For bass strings, aim for a 45° break angle at the saddle—this creates enough downward pressure to transfer vibration efficiently to the guitar body, producing a full, resonant low end. Treble strings work best with a 30° angle, balancing sufficient pressure to avoid buzz while preserving their bright, crisp tone without unnecessary tension.

• String Tree Tension: If your guitar has string trees, ensure they’re aligned properly to distribute even pressure across the nut. Misaligned string trees can cause some strings to sit tighter than others, leading to inconsistent intonation or tuning instability. Adjust the tree’s position so each string rests evenly in its nut slot, with no extra pull that could warp the string’s path or create unwanted friction.

5. Professional-Level Action Optimization

5.1 Custom Nut & Saddle Work

• Hand-Cut Nut Replacement: Replace generic, factory-installed nuts with a precision hand-cut replacement, crafted with a strict 1mm string spacing. This meticulous spacing eliminates uneven string crowding, ensuring each string sits perfectly aligned with its corresponding fret for cleaner chord voicings, smoother string bends, and reduced fret buzz during fast runs. Every cut is made by hand using specialized nut files, guaranteeing a snug fit that locks strings in place without excess friction, boosting tuning stability for even the most aggressive playing styles.

• Radius Adjustment: Match your nut and saddle to your fretboard’s unique contour with customizable radius adjustments in 9.5", 12", or 14" options. A 9.5" radius caters to blues and rock players who favor big bends, as its slightly flatter curve balances comfort and string contact. Jazz players often opt for a 12" radius for warm, full chord tones, while shredders and metal musicians prefer a 14" radius, its ultra-flat surface enabling lightning-fast, across-the-fretboard sweeps with minimal string drag. This tailored contour ensures uniform string-to-fret contact from the nut to the body, eliminating dead spots and enhancing overall playability.

5.2 Multi-Scale Neck Adjustment

• Truss Rod Calibration: Take neck adjustment to the next level with 3D-mounted truss rod calibration, performed using precision hex key tools. Unlike basic truss rod tweaks, this 3D approach accounts for subtle neck warps and twists that standard adjustments miss, ensuring the neck sits perfectly aligned with the body and fretboard. Luthiers use specialized gauges to map neck curvature from multiple angles, then make micro-adjustments to the truss rod to achieve optimal relief—no more uneven string height or fret buzz caused by overlooked neck irregularities.

• Scale Length Considerations: Fine-tune your action by weighing the distinct benefits of 24.75" and 25.5" scale lengths. The shorter 24.75" scale, common on Gibson-style guitars, delivers a slinkier feel with less string tension, making it ideal for players with smaller hands or those who prioritize easy bends and warm, rounded tones. In contrast, the 25.5" scale, standard on Fender instruments, offers tighter string tension for enhanced tuning stability and brighter, more articulate notes, a favorite among metal and funk players who need crisp attack and precise intonation during high-speed riffs. Aligning your action adjustments with your guitar’s native scale length ensures every tweak works with the instrument’s natural specs, not against them.

6. Long-Term Action Maintenance

6.1 Regular Monitoring

• Humidity Impact: Fluctuations in seasonal humidity are one of the quietest threats to your guitar’s neck tension and action stability. In dry winter months, heated indoor air can sap moisture from the wood, causing the neck to bow excessively and raise string height, while humid summer conditions can swell the wood, leading to a concave neck and annoying fret buzz. To counter this, adjust your truss rod in small, incremental turns at the start of each season—tighten slightly in dry weather to reduce bow, and loosen a touch in humid conditions to relieve excess pressure. This proactive tuning keeps your neck’s relief consistent, ensuring your action stays balanced year-round.

• Weekly Cleaning: After any seasonal or routine action adjustment, set aside 10 minutes each week to clean and condition your fretboard. Wipe away dust, sweat, and string residue with a lint-free cloth, then apply a small amount of specialized fretboard oil (avoid mineral oil for rosewood or ebony boards) to nourish the wood. This post-adjustment oiling prevents the fretboard from drying out or warping, which could throw off your carefully set action, while also keeping frets smooth and reducing friction for smoother playing.

6.2 When to Seek Professional Help

• DIY Limitations: While DIY action tweaks work for minor fixes, know when to step back. Repairs or adjustments involving frets beyond the 12th fret—like correcting intonation issues on the upper register or addressing deep grooves from severe fret wear—require specialized tools and precision that most home setups lack. Attempting these fixes without expertise can damage your fretboard, ruin intonation entirely, or even break delicate guitar components, turning a small issue into a costly repair.

• Cost-Benefit Analysis: When professional help is needed, weigh the pros and cons of a factory setup versus an independent luthier. Factory setups offer consistent, brand-specific standards, making them a solid choice for newer guitars still under warranty, but they often follow a one-size-fits-all template and can be pricier. Independent luthiers, by contrast, provide personalized service tailored to your playing style, guitar’s unique quirks, and budget. They’re often more affordable for older instruments or custom adjustments, and many bring decades of hands-on experience that can breathe new life into a well-loved guitar.

7. Action Adjustment Reference Guide

7.1 Action Specifications

• String Gauge vs. Height Chart: For players using light-gauge strings (009-011), aim for a string height range of 1.5–2.0 mm at the 12th fret for treble strings and 2.0–2.5 mm for bass strings. This lower range balances playability and reduces finger fatigue, ideal for chord-focused or beginner playing. Heavier-gauge strings (011-013) require a slightly higher range of 2.0–2.5 mm for treble and 2.5–3.0 mm for bass to accommodate increased tension, preventing fret buzz and maintaining intonation stability during aggressive strumming or bending.

• String Height by String: Tailor height to each string’s natural tension for consistent playability. Start with the low E and A strings, setting them to the higher end of your gauge’s range to handle their thicker, tighter tension without buzzing. Gradually decrease height as you move to the D and G strings, then fine-tune the high E and B strings to the lower end of the range—their thinner gauge and lower tension let them sit closer to the fretboard for faster, smoother fretting without sacrificing tone.

7.2 Adjustment Frequency

• Beginner: New players should check and adjust their guitar’s action every 2 weeks, aligning this task with regular string changes. Beginners often play with lighter touch pressure and may not notice subtle shifts in neck tension or string height right away, so frequent checks help maintain consistent playability and build good maintenance habits.

• Professional Players: For touring or studio professionals, adjust action monthly with seasonal changes to account for humidity and temperature shifts that warp necks. For intensive performance schedules, like multi-show weekends or recording sessions, quick session-by-session tuning and minor action tweaks (such as saddle height nudges) ensure optimal playability for each set, adapting to the unique acoustics of venues or the demands of specific musical pieces.
